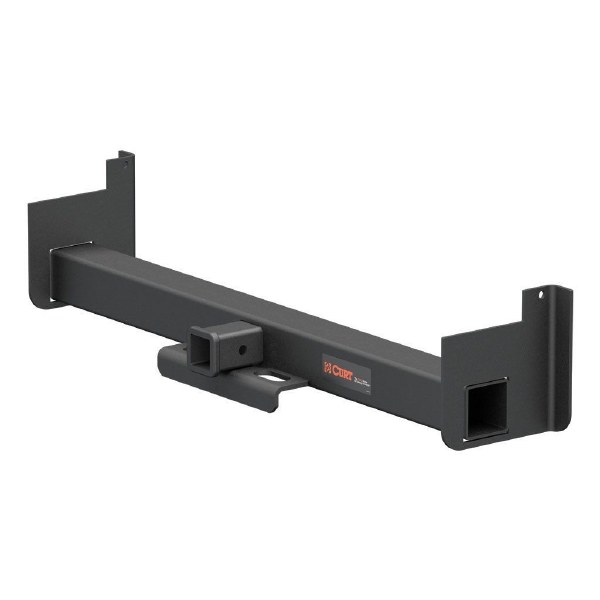

Universal Weld-On Trailer Hitch 44"x9"

UNIVERSAL WELD-ON TRAILER HITCH, 2" RECEIVER (UP TO 44" FRAMES, 9" DROP)

Adjustable frame fits a variety of vehicles (side plates do not come pre-welded)
Fits truck frames up to 44" wide
Rated as a class 5 hitch
Tested for safety in accordance with SAE J684
Great for use with utility boxes
Protected by a highly durable black powder coat finish
Co-cured in a rust-resistant liquid A-coat, inside and out
Made in USA

Notes:
Side plates must be welded 42" apart or less to achieve 16K rating

Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Adjustable side plates come detached from the main body of the hitch and must be welded on


A CURT weld-on trailer hitch is a unique towing option for your vehicle. As the name suggests, a weld-on hitch is designed to be welded directly onto the frame, using its thick side plates. While the installation of a weld-on hitch is far different from that of CURT custom hitches, weld-on hitches offer a high weight carrying capacity and a reliable towing solution when installed properly. They also come in a three-piece design: a main body and two attachable side plates that allow the hitch to fit multiple vehicle frames.

Having a weight rating comparable to a class 5 trailer hitch, weld-on hitches work well on 1/2-ton, 3/4-ton and 1-ton pickup trucks, including service body vehicles, and they are excellent for towing a variety of heavy-duty trailers, such as toy haulers, dump trailers, logging trailers, gravity boxes and small yacht trailers (NOTE: Never exceed the lowest weight capacity of any towing component). This particular weld-on hitch features a gross trailer weight capacity of up to 16,000 lbs. and a 2" x 2" receiver tube opening. It comes with a scratch-resistant and rust-resistant black powder coat finish and requires no hardware for installation. It is able to fit a frame up to 44" wide (to achieve 20K-rating, plates need to be welded 42" wide or less).

PRODUCT DETAILS
A CURT weld-on trailer hitch is a unique towing option for your vehicle. As the name suggests, a weld-on hitch is designed to be welded directly onto the frame, using its thick side plates. While the installation of a weld-on hitch is far different from that of CURT custom hitches, weld-on hitches offer a high weight carrying capacity and a reliable towing solution when installed properly. They also come in a three-piece design: a main body and two attachable side plates that allow the hitch to fit multiple vehicle frames.

Having a weight rating comparable to a class 5 trailer hitch, weld-on hitches work well on 1/2-ton, 3/4-ton and 1-ton pickup trucks, including service body vehicles, and they are excellent for towing a variety of heavy-duty trailers, such as toy haulers, dump trailers, logging trailers, gravity boxes and small yacht trailers (NOTE: Never exceed the lowest weight capacity of any towing component). This particular weld-on hitch features a gross trailer weight capacity of up to 16,000 lbs. and a 2" x 2" receiver tube opening. It comes with a scratch-resistant and rust-resistant black powder coat finish and requires no hardware for installation. It is able to fit a frame up to 44" wide (to achieve 20K-rating, plates need to be welded 42" wide or less).

PRODUCT SPECIFICATIONS
Main BodySquare
Receiver Tube Size2 IN
Warranty Limited Lifetime
Weight Carrying Capacity 16,000 LB
Tongue Weight 1,600 LB
Product Weight 45LB
Material Carbon Steel
Finish CARBIDE BLACK POWDER COAT
Drop 9 IN
