Onboard Air Kit w/Fill Kit & 0.5 Gallon Tank

HP10163-AL HP325 Series Onboard Air Kit (with 1/2 Gallon Tank - Polished Aluminum)

Create & Store compressed air on the go with Pacbrake's Onboard Air Kits: a complete onboard air system for any vehicle!


Product Description
Pacbrake's HP325 Series Onboard Air Kits are a complete onboard system (Air Compressor & Air Tank) that builds and stores compressed air on the go allowing for quicker product activation, filling inflatable toys or tires, or whatever else you may need air for on the road ahead!

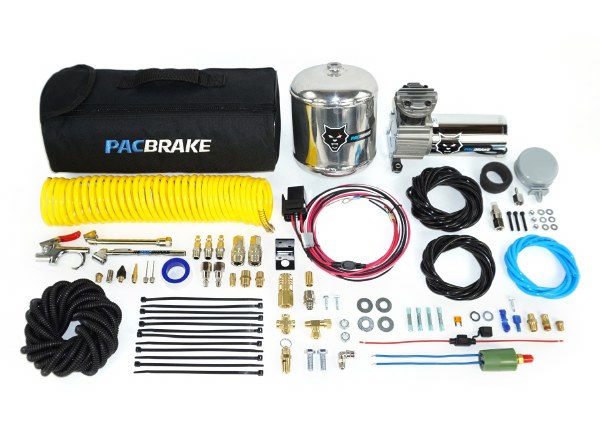

Kit Details:

12VDC HP325 Series Air Compressor - Chrome finish
1/2 Gallon Aluminum Air Tank - Polished Aluminum finish
Includes all installation hardware, air lines, electrical connectors & fittings, pressure switch(es), relay(s), and pre-built wiring harnesses
25' Curly Hose & Accessories Kit

HP325 Series Compressor Specifications:
8.7 inch x 4 inch x 6.2 inch (LxWxH) / [221mm x 102mm x 158mm]
5.5 lbs [2.49kg]
1/2 Gallon Tank Specifications:
8.39 inch x 4.73 inch x 7.09 inch (LxWxH) / [213mm x 120mm x 180mm]
5.9 inch (Diameter) / [150mm]
1.98 lbs [0.9kg]

*In-Cab or Wireless Controls sold separately
Vehicle Application
Universal
Features
Voltage: 12 VDC
Duty Cycle: 33% (20 minutes @ 100 psi)
Horsepower: 1/4 HP
Compressor Max Working Pressure: 150 psi [1034 kPa]
Tank Max Working Pressure: 200 psi [1380 kPa]
NPT Ports: 2 x 1/4" (-4)
Tank Burst Pressure: 600 psi [4137 kPa]
Tank Working Temp: -40°F to 248°F [-40°C to 120°C]
