GM Puck System 5th Wheel Legs 30K

CURT 16024 OEM-Compatible 5th Wheel Leg Kit


Vehicle Fitment

The CURT 16024 is designed to fit select model years of GM heavy-duty trucks that come equipped with the factory bed “puck system” and have an 8-foot bed. The most common compatible vehicles include:

Chevrolet Silverado 2500HD
2020 2021 2022 2023 2024 2025 2026 (and newer, where GM puck system remains unchanged)
Chevrolet Silverado 3500 HD


2020 2021 2022 2023 2024 2025 2026


Product Overview

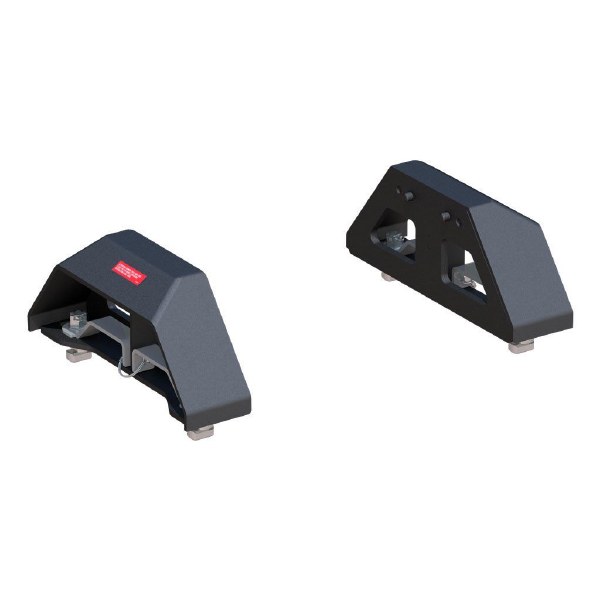

The CURT 16024 is a heavy-duty OEM-compatible 5th-wheel leg kit designed to work with the truck-bed puck system installed in select GM pickups. It provides a stable, secure platform for mounting a 5th-wheel hitch, enabling the towing of heavy trailers with ease.

This leg kit is intended to be used with a compatible 5th-wheel hitch head (e.g. CURT A30 #16590) the legs themselves are only part of the full hitch assembly.


Features & Benefits



Quick, secure installation: Uses a quarter-turn anchoring system allowing easy install/removal the legs drop into the truck’s puck mounts and lock into place with anchor handles.



Adjustable anchors: Anchors can be adjusted to eliminate chucking (i.e. slack or noise between hitch and truck bed) for a tight, rattle-free connection.


Heavy-duty construction: Made from steel, with a durable carbide black powder-coat finish and co-cured rust-resistant liquid A-coat providing strong resistance to corrosion, scratches and UV damage.




High towing capacity: Supports up to 30,000 lb (13,607.8 kg) Gross Trailer Weight (GTW). warranty: Covered by the manufacturer’s limited lifetime warranty (for parts).

No drilling required: Uses existing puck system in truck bed no drilling or permanent modification needed (so long as the truck is already equipped).

Technical Specifications


Finish Carbide Black Powder Coat + rust-resistant A-coat



Gross Trailer Weight Capacity (GTW) 30,000 lb (13,607.8 kg)

Vertical Load / Tongue Weight Capacity 7,500 lb (as per installation manual)
assets.curtmfg.com

Mount Type Truck-bed puck system (GM OEM puck-style mounts)



Compatibility Requires compatible 5th-wheel hitch head (e.g. CURT A30 #16590)

Packaging / Shipping Weight 50.7 lb (approx. 23.0 kg)


Important Fitment Notes:



The truck must have the OEM puck system / 5th-wheel prep package from the factory. If your truck does not have this, the 16024 legs will not work without additional modification.


You need a compatible 5th-wheel hitch head the legs alone do not provide the hitch.

Ensure that the bed is the 8-ft (long bed) configuration 16024 does not support short bed versions.
Always verify your truck’s towing capacity and that of the trailer — the 30,000 lb rating is the maximum for the legs only, and actual safe towing capacity may be lower depending on your hitch head, trailer, and vehicle.
assets.curtmfg.com
+1

Usage and Installation Details

CURT 16024 uses a quarter-turn anchoring mechanism: to install or remove the legs, you simply drop them into the truck bed puck mounts and twist the anchor handles to lock them into place. This makes installation quick and straightforward, and avoids the need for tools or drilling (assuming the puck system exists).

Once installed, the legs provide a stable, secure base to bolt on a 5th-wheel hitch head (e.g. CURT A30), converting the truck bed into a fully functional 5th-wheel towing setup.


The adjustable anchors help eliminate chucking unwanted movement or rattling between hitch and truck which improves towing stability and reduces noise.


Finish includes carbide black powder coat and a liquid A-coat underneath for rust and corrosion resistance crucial for longevity, especially in harsh climates or for heavy use.
Summary

The CURT 16024 is a high-capacity, high-quality 5th-wheel leg kit ideal for owners of GM heavy-duty 2500/3500 trucks (Silverado or Sierra) with an 8-foot bed and the factory puck system. It makes installing or removing a 5th-wheel hitch significantly easier just drop in the legs, twist the anchors, and bolt on your hitch head. With a 30,000 lb GTW rating, durable steel construction, corrosion-resistant finish, and adjustable anchoring to prevent hitch play, it’s a robust choice for heavy-duty towing, whether for RVs, large trailers, or work equipment.
