C50351A PH+ PowerHalt Electronic Air Shut-Off Valve Kit for F-250/350/450/550/650 6.7L Power Stroke
Fits:
2020-2025 Ford F-250 / F-350 Pickup
2020-2025 Ford F-350 / F-450 / F-550 / F-650 Chassis Cab
w/ 6.7L Power Stroke Engine

Plug & play installation with factory connectors and pre-built wiring harness
Kits can easily be installed in 60 minutes or less
Have a leased truck? No worries! Unit can be easily removed
Operator friendly: fully automatic operation with manual override
Easily change between multiple built-in shut-off speeds
Will not set ECM trouble codes
IP67 rated seal against water ingress
Industry Leading Two Year Warranty

Diesel engine runaway can happen whenever your engine sucks in flammable particles; such as gas and oil vapors in the air, or even grain dust.

Pacbrake's PH+ Electronic Emergency Engine Shutdown system controls the electronic throttle body in the intake manifold found on most late model diesel engines and will close off the air supply in emergency situations, protecting your life, your livelihood, and your vehicle!

Product Description
Pacbrake's PH+ (PowerHalt Plus) Electronic Air Shutoff System is an electronically controlled emergency engine shut down system which forces engine shut down by blocking an engine’s air intake path.

Automatic shutdown is achieved by actuating the engine’s existing electronic throttle unit if engine speed exceeds the pre-set speed or by manual override. The valve electronically returns to open position after emergency engine shutdown, all while providing feedback to the operator that the valve is held closed via an illuminated switch.


PH+ KEY BENEFITS:

Reliable and safe emergency shut down for diesel engines with electronic throttle body: automatically via overspeed signal or manually via toggle switch (valve remains closed for minimum 15 seconds after tripping and will hold closed until removal of shut-down signal)
Capable of shutting down at a secondary trip speed for special applications such as protection of PTO equipment or as an anti-theft device
In-cab switch for manual shutdown included
Auto resets after shutdown
When valve is closed, supplied switch light illuminates to indicate system activation
Valve will electronically reset and switch light will extinguish upon removal of engine shut-down signal
Secondary trip speed for PTO and anti-theft applications – providing ground to the Secondary Trip Speed input allows users to engage a second emergency shut-down speed for use while powering auxiliary equipment or to prevent theft. (To prevent accidental shut down while enabling and disabling Secondary Trip Speed, a 5 second grace period is applied when switching to a lower trip speed to allow for engine speed to reduce. When switching to a higher trip speed, the change is applied immediately.)
KIT CONTENTS:

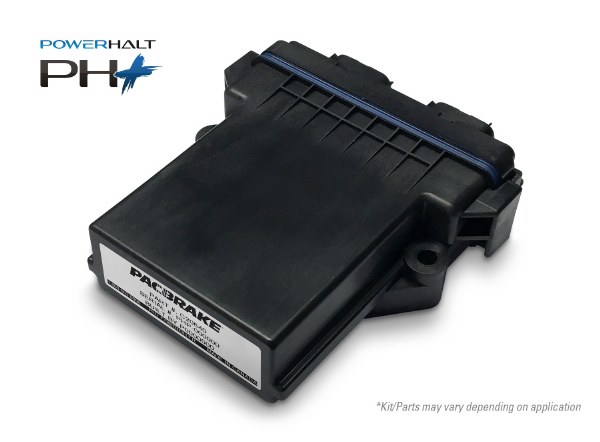

PH+ PowerGuard Controller
Application Specific Harness
Power/Switch Harness
Toggle Switch Assembly
Tie Straps
Self-Tapping Screws
