B&W Turnoverball Gooseneck Hitch Under-Bed Chev/GMC 2-5/16" /30k

This product is not eligible for free shipping. Freight charges apply.

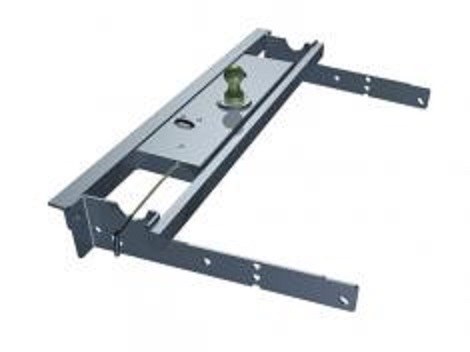

B&W GNRK1050 Turnoverball Gooseneck Hitch - 30,000 lb

FITMENT

**1988-1998 Chevrolet C/K 1500, 2500 & 3500 – Short Bed**
**1988-1998 GMC C/K 1500, 2500 & 3500 – Short Bed**

**1999-2000 Chevrolet C/K 2500 & 3500 – Short Bed**
**1999-2000 GMC C/K 2500 & 3500 – Short Bed**

**IMPORTANT:** Fits trucks with a **full C-channel frame**. Verify the truck's exact year, model, bed configuration and frame before ordering. B&W's current fitment does not list 1999–2000 1500 models for GNRK1050.

PRODUCT DESCRIPTION

The B&W GNRK1050 Turnoverball is a vehicle-specific, under-bed gooseneck trailer hitch designed for compatible Chevrolet and GMC C/K Series short-bed trucks. The hitch mounts beneath the truck bed and provides a heavy-duty connection for gooseneck trailers while allowing the truck bed to remain clear when the hitch is not in use.

The removable 2-5/16" Turnoverball installs through an opening in the truck bed. When the gooseneck hitch is not required, the ball can be removed, turned upside down and stored in the hitch, leaving the truck bed clear for hauling cargo.

**A hitch when you need it – a level bed when you don't.**

FEATURES

* B&W Turnoverball gooseneck hitch system
* Vehicle-specific, direct-fit design
* Under-bed installation
* Removable 2-5/16" gooseneck ball
* Turnoverball stores beneath the bed when not in use
* Single-piece machined ball socket
* Solid, machined 2-5/16" hitch ball
* Spring-loaded locking pin release handle
* 5/8" steel locking pin passes completely through the ball
* Durable powder-coated finish
* Requires a 4" opening through the truck bed
* Heavy-duty construction
* Custom-fit mounting system
* Made in the USA
* Limited Lifetime Warranty

TOWING CAPACITY

* **Gross Trailer Weight:** 30,000 lb
* **Gross Vertical/Pin Weight:** 7,500 lb
* **Hitch Ball:** 2-5/16"

Do not exceed the towing or weight rating of the hitch, truck, trailer, coupler or any other towing component.

KIT CONTENTS

The GNRK1050 consists of two boxes:

**GNRM1050 – Mounting Kit**
Vehicle-specific mounting components and hardware.

**GNRC950 – Center Section**
Turnoverball center section and 2-5/16" removable hitch ball.

**Complete Hitch Kit:** GNRM1050 + GNRC950. B&W lists the mounting kit at approximately 68 lb and the center section at approximately 42 lb.

TURNOVERBALL DESIGN

The B&W Turnoverball system uses a removable square-shank 2-5/16" gooseneck ball. When towing, the ball locks securely into the center section. When the hitch is not needed, the ball can be removed, turned upside down and stored in the hitch.

This design leaves the truck bed clear when the gooseneck hitch is not being used.

FIFTH-WHEEL COMPATIBILITY

The Turnoverball mounting system is compatible with select B&W Companion fifth-wheel hitch systems. Verify current Companion compatibility for the specific truck and hitch configuration before ordering.

INSTALLATION

The GNRK1050 uses vehicle-specific mounting components designed to attach to the truck frame. Installation requires a 4" opening through the truck bed for the Turnoverball.

Installation should be performed by a qualified installer familiar with truck and towing equipment.

MANUFACTURER INFORMATION

Brand:** B&W Trailer Hitches
Part Number:** GNRK1050
Product:** Turnoverball Gooseneck Hitch
Application:** Chevrolet & GMC C/K Series Short Bed Trucks
Ball Size:** 2-5/16"
Gross Trailer Weight: 30,000 lb
Gross Vertical/Pin Weight: 7,500 lb
Country of Manufacture:** USA
Warranty:** Limited Lifetime Warranty
