A30 5th Wheel Hitch GM OEM Prep Package 2020

A30 5th Wheel Hitch with GM Puck System Legs

Fits:
Chevrolet Silverado 2500 & 3500 HD 8" bed with 5th wheel prep package
2020 2021 2022 2023 2024 2025

GMC Sierra 2500 & 3500 HD 8' bed with 5th wheel prep package
2020 2024 2022 2023 2024 2025

Fits select Chevy / GMC long-bed trucks with puck system (year range specific)
Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
Fully articulating torsion head for controlled coupling and stable towing
Lockable handle self-resets to the ready-to-couple position after uncoupling
Constructed with a cast steel main body for a more precise build
High-strength, interlocking jaws fully wrap the kingpin to minimize noise
Extra wide head opening for easier coupling
Fast, one-pin head removal makes moving easy with smaller, lighter pieces
Three-position coupling indicator clearly shows coupling status
Quarter-turn anchoring system provides quick installation and removal
Compatible with kingpin extension boxes, including common pivoting pin boxes
Offers three height adjustment positions to adapt to each unique truck bed
Includes a polyethylene lube plate to eliminate messy grease deposits
Tested for safety in accordance with SAE J2638
Protected by a highly durable carbide powder coat finish
Limited lifetime warranty (one-year finish, one-year parts)

Notes:
Requires GM puck system for installation (intended for long-bed trucks only)
Includes A30 5th wheel hitch head #16590 and GM puck system legs #16024 (patent# 8,827,298)
Capacity limited to lowest-rated towing component

Product Details

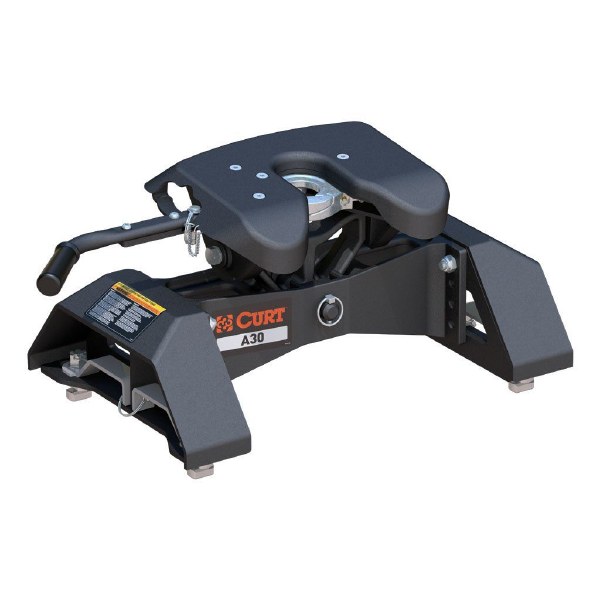

The CURT A30 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 30K 5th wheel hitch.
Like our other A-series hitches, this 30K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed.
This A30 5th wheel hitch also comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on select Chevrolet or GMC trucks with the truck bed puck system (year range specific). The legs mount directly into the four-point mounting system, allowing the CURT A30 hitch to be installed quickly and easily. The most unique feature of these legs is their quarter-turn anchoring system. The variable-position anchors allow the 5th wheel hitch head to easily drop into the puck system, and with a quarter-turn, the hitch can be installed or removed as needed. The anchors can also be adjusted to eliminate any chucking noises.
Once installed, the A30 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with an easy-to-read coupling indicator. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling.
To protect the A30 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a carbide black powder coat finish and a limited lifetime warranty. We also test the A30 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

PRODUCT SPECIFICATIONS
Vertical Load - 7,500 LB
Shipping Weight - 152.300
Gross Trailer Weight(GTW) - 30,000 LB
Warranty - Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
