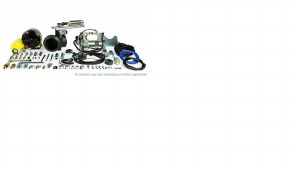

Exhaust Break Kit Dodge Ram Cummins 5.9L

C44030 Direct Mount 4 inch PRXB Exhaust Brake Kit for 2003-2004 Dodge RAM Cummins 5.9L ISB

Fits:
2003-2004 Dodge RAM Cummins 5.9L ISB 24 Valve with Standard Transmission (Built up to Jan 4, 2004)
Application Notes
For vehicles built up to Jan 4, 2004 only. All 2003 - 2004 kits will NOT work with Banks Turbo Back Monster® Exhaust. However they will work with Banks Cat Back Monster® Exhaust. Applications for aftermarket turbo chargers, please contact Pacbrake for further kit information 800.663.0096. Air Actuated - Comes with Air Tank, Hose and Accessories.

Pacbrake's PRXB exhaust brake delivers the strongest braking horsepower, greatest speed reductions & shortest stopping distances possible without the use of service brakes.
Providing 50 percent more braking power at lower RPM's, PRXB gives you the best holdback in the 1400-1800 RPM range (where you typically drive).
The spring controlled pressure regulated mechanism on the exhaust brakes protects against engine overpressure.
The brakes use industry exclusive Arcor nitride coating on housing and components which increases resistance to wear and corrosion.
Severe duty & military approved.

Get the highest braking power to lowest price ratio available on the market with PRXB Exhaust Brakes by Pacbrake.

We are proud suppliers of exhaust brake systems for use in the US Army's fleet of Stryker Wheeled Vehicles designed and built by General Dynamics Land Systems.

Check out Pacbrake's Direct Mount 4 inch PRXB High Performance Exhaust Brake Kit for Dodge RAM 2003-2004.5 Cummins 5.9L ISB 24 Valve with Standard Transmission (Built upto Jan 4, 2004).

Product Description
Provides 50 percent More Braking Power at Lower RPM's. PRXB gives you the best holdback in the 1400-1800 RPM range (where you typically drive).

The spring controlled pressure regulated mechanism on the exhaust brakes protects against engine overpressure.

When the brake is deactivated, exhaust flow is unrestricted and won't interfere with power output.

Patented 90 degree Non-contacting Butterfly Valve is specially engineered to maximise backpressure while preventing seizing.

The brakes use industry exclusive Arcor nitride coating on housing and components which increases resistance to wear and corrosion while strengthening the exhaust brake and adding lubricity.

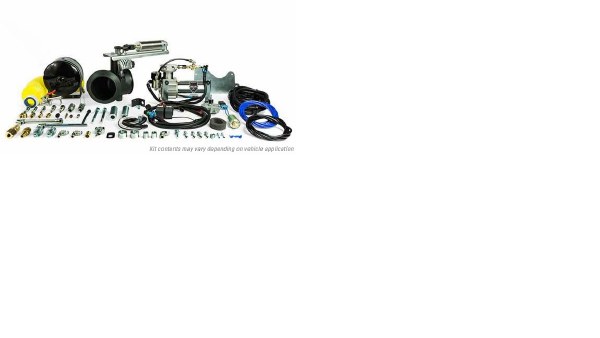

Every PRXB Automotive Kit comes with:

Everything required for a complete installation
PRXB Exhaust Brake
Controller (when required for application)
Pacbrake Onboard Air Kit, which includes: HP325 Series Compressor, 0.5 Gal Air Tank, 25 Foot Coiled Air Hose, Air Accessories and Fittings Kit. Pacbrake's Direct Mount 4 inch PRXB High Performance Exhaust Brake Kit
Air Actuated-Comes with Air Tank
Hose and Accessories
Optional Parts:
Switch: Optional (Pacbrake Part Number C18042)
ECM Bypass: Optional (Pacbrake Part Number C14037)
Details:

Size: 4.0 Inch
Hose Length: 25 Foot
Hose Type: Coiled
Capacity: .5 Gallon
Transmission: Standard Transmission
Mount: Direct Mount
Valve: 24 Valve
Engine Manufuacturer: Cummins
Engine Years: 2003-2004
Liters: 5.9 Liter
